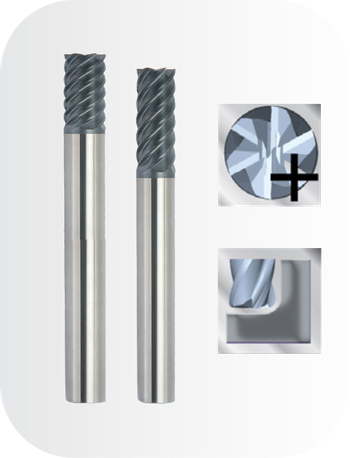

As fresas toroidais da série 534 Mastercut estão disponíveis em 2, 3 ou 4 cortes, oferecendo desempenho superior para alta produtividade.
São fornecidas também com revestimento Power A (AlTin), maximizando ainda mais a vida útil e o desempenho da ferramenta.
Código | MARCA | Ø MM / POL" | Corte | Haste | Raio | Total |
534-002-1 | MASTERCUT | 6.0 | 18.0 | 6.0 | 0.5 | 58.0 |
534-004-1 | MASTERCUT | 6.0 | 18.0 | 6.0 | 1.0 | 58.0 |
534-202-1 | MASTERCUT | 6.0 | 32.0 | 6.0 | 0.5 | 75.0 |
534-204-1 | MASTERCUT | 6.0 | 32.0 | 6.0 | 1.0 | 75.0 |
534-006-1 | MASTERCUT | 8.0 | 24.0 | 8.0 | 0.5 | 63.0 |
534-008-1 | MASTERCUT | 8.0 | 24.0 | 8.0 | 1.0 | 63.0 |
534-206-1 | MASTERCUT | 8.0 | 32.0 | 8.0 | 0.5 | 75.0 |
534-208-1 | MASTERCUT | 8.0 | 32.0 | 8.0 | 1.0 | 75.0 |
534-010-1 | MASTERCUT | 10.0 | 30.0 | 10.0 | 0.5 | 75.0 |
534-012-1 | MASTERCUT | 10.0 | 30.0 | 10.0 | 1.0 | 75.0 |
534-210-1 | MASTERCUT | 10.0 | 50.0 | 10.0 | 0.5 | 100.0 |
534-212-1 | MASTERCUT | 10.0 | 50.0 | 10.0 | 1.0 | 100.0 |
534-014-1 | MASTERCUT | 12.0 | 36.0 | 12.0 | 0.5 | 84.0 |
534-016-1 | MASTERCUT | 12.0 | 36.0 | 12.0 | 1.0 | 84.0 |
534-214-1 | MASTERCUT | 12.0 | 50.0 | 12.0 | 0.5 | 100.0 |
534-216-1 | MASTERCUT | 12.0 | 50.0 | 12.0 | 1.0 | 100.0 |
534-018-1 | MASTERCUT | 14.0 | 42.0 | 14.0 | 0.5 | 84.0 |
534-020-1 | MASTERCUT | 14.0 | 42.0 | 14.0 | 1.0 | 84.0 |
534-218-1 | MASTERCUT | 14.0 | 50.0 | 14.0 | 0.5 | 100.0 |
534-220-1 | MASTERCUT | 14.0 | 50.0 | 14.0 | 1.0 | 100.0 |
534-022-1 | MASTERCUT | 16.0 | 48.0 | 16.0 | 0.5 | 93.0 |
534-024-1 | MASTERCUT | 16.0 | 48.0 | 16.0 | 1.0 | 93.0 |
534-222-1 | MASTERCUT | 16.0 | 62.0 | 16.0 | 0.5 | 125.0 |
534-224-1 | MASTERCUT | 16.0 | 62.0 | 16.0 | 1.0 | 125.0 |
534-026-1 | MASTERCUT | 18.0 | 54.0 | 18.0 | 0.5 | 100.0 |
534-028-1 | MASTERCUT | 18.0 | 54.0 | 18.0 | 1.0 | 100.0 |
534-226-1 | MASTERCUT | 18.0 | 62.0 | 18.0 | 0.5 | 125.0 |
534-228-1 | MASTERCUT | 18.0 | 62.0 | 18.0 | 1.0 | 125.0 |
534-030-1 | MASTERCUT | 20.0 | 60.0 | 20.0 | 0.5 | 105.0 |
534-032-1 | MASTERCUT | 20.0 | 60.0 | 20.0 | 1.0 | 105.0 |
534-230-1 | MASTERCUT | 20.0 | 65.0 | 20.0 | 0.5 | 130.0 |
534-232-1 | MASTERCUT | 20.0 | 65.0 | 20.0 | 1.0 | 130.0 |
