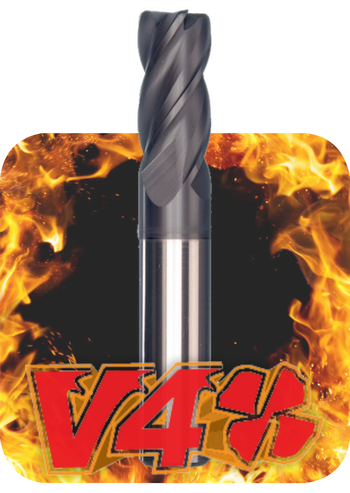

FRESA TOROIDAL METAL DURO 4C LINHA V4






FRESA PARA ALTA PERFORMANCE


* FRESA TOROIDAL (FRESA RAIADA) 4 CORTES COM HELICES VARIADAS:

           com suas hélices retificadas com maior alívio e ângulos variados, a Fresa V4 proporciona maior avanço e vida útil mais longa, além de um acabamento superior e pouca vibração.



CATÁLOGO GERAL





Codigo Cod. C/ Weldon MARCA Ø MM / POL" Corte RAIO Haste Total
502-401-1 502-401W-1 MASTERCUT 3.0 6 0.25 3 38
502-402-1 502-402W-1 MASTERCUT 3.0 6 0.50 3 38
502-403-1 502-403W-1 MASTERCUT 3.0 6 0.75 3 38
502-404-1 502-404W-1 MASTERCUT 3.0 6 1.00 3 38
500-400-1 500-400W-1 MASTERCUT 3.0 12 0.25 3 38
500-401-1 500-401W-1 MASTERCUT 3.0 12 0.50 3 38
500-402-1 500-402W-1 MASTERCUT 3.0 12 0.75 3 38
501-400-1 501-400W-1 MASTERCUT 3.0 20 0.25 3 65
501-401-1 501-401W-1 MASTERCUT 3.0 20 0.50 3 65
501-402-1 501-402W-1 MASTERCUT 3.0 20 0.75 3 65
501-403-1 501-403W-1 MASTERCUT 3.0 20 1.00 3 65
502-410-1 502-410W-1 MASTERCUT 4.0 8 0.25 4 50
502-411-1 502-411W-1 MASTERCUT 4.0 8 0.50 4 50
502-412-1 502-412W-1 MASTERCUT 4.0 8 0.75 4 50
502-413-1 502-413W-1 MASTERCUT 4.0 8 1.00 4 50
502-420-1 502-420W-1 MASTERCUT 5.0 10 0.25 5 50
500-420-1 500-420W-1 MASTERCUT 4.0 14 0.25 4 50
500-421-1 500-421W-1 MASTERCUT 4.0 14 0.50 4 50
500-422-1 500-422W-1 MASTERCUT 4.0 14 0.75 4 50
500-423-1 500-423W-1 MASTERCUT 4.0 14 1.00 4 50
501-410-1 501-410W-1 MASTERCUT 4.0 20 0.25 4 65
501-411-1 501-411W-1 MASTERCUT 4.0 20 0.50 4 65
501-412-1 501-412W-1 MASTERCUT 4.0 20 0.75 4 65
501-413-1 501-413W-1 MASTERCUT 4.0 20 1.00 4 65
502-421-1 502-421W-1 MASTERCUT 5.0 10 0.50 5 50
502-422-1 502-422W-1 MASTERCUT 5.0 10 0.75 5 50
502-423-1 502-423W-1 MASTERCUT 5.0 10 1.00 5 50
500-440-1 500-440W-1 MASTERCUT 5.0 16 0.25 5 50
500-441-1 500-441W-1 MASTERCUT 5.0 16 0.50 5 50
500-442-1 500-442W-1 MASTERCUT 5.0 16 0.75 5 50
500-443-1 500-443W-1 MASTERCUT 5.0 16 1.00 5 50
501-420-1 501-420W-1 MASTERCUT 5.0 20 0.25 5 75
501-422-1 501-422W-1 MASTERCUT 5.0 20 0.50 5 75
501-423-1 501-423W-1 MASTERCUT 5.0 20 0.75 5 75
501-424-1 501-424W-1 MASTERCUT 5.0 20 1.00 5 75
500-410-1 500-410W-1 MASTERCUT 3 8 0.25 6 57
500-411-1 500-411W-1 MASTERCUT 3 8 0.50 6 57
500-430-1 500-430W-1 MASTERCUT 4.0 11 0.25 6 57
500-431-1 500-431W-1 MASTERCUT 4.0 11 0.50 6 57
500-433-1 500-433W-1 MASTERCUT 4.0 11 1.00 6 57
500-450-1 500-450W-1 MASTERCUT 5.0 13 0.25 6 57
500-451-1 500-451W-1 MASTERCUT 5.0 13 0.50 6 57
500-453-1 500-453W-1 MASTERCUT 5.0 13 1.00 6 57
502-430-1 502-430W-1 MASTERCUT 6.0 12 0.25 6 50
502-431-1 502-431W-1 MASTERCUT 6.0 12 0.50 6 50
502-432-1 502-432W-1 MASTERCUT 6.0 12 0.75 6 50
502-433-1 502-433W-1 MASTERCUT 6.0 12 1.00 6 50
502-434-1 502-434W-1 MASTERCUT 6.0 12 1.25 6 50
502-435-1 502-435W-1 MASTERCUT 6.0 12 1.50 6 50
502-436-1 502-436W-1 MASTERCUT 6.0 12 2.00 6 50
502-440-1 502-440W-1 MASTERCUT 6.0 13 0.25 6 57
502-441-1 502-441W-1 MASTERCUT 6.0 13 0.50 6 57
502-443-1 502-443W-1 MASTERCUT 6.0 13 1.00 6 57
502-445-1 502-445W-1 MASTERCUT 6.0 13 1.50 6 57
502-446-1 502-446W-1 MASTERCUT 6.0 13 2.00 6 57
500-460-1 500-460W-1 MASTERCUT 6.0 19 0.25 6 63
500-461-1 500-461W-1 MASTERCUT 6.0 19 0.50 6 63
500-462-1 500-462W-1 MASTERCUT 6.0 19 0.75 6 63
500-463-1 500-463W-1 MASTERCUT 6.0 19 1.00 6 63
500-464-1 500-464W-1 MASTERCUT 6.0 19 1.25 6 63
500-465-1 500-465W-1 MASTERCUT 6.0 19 1.50 6 63
500-466-1 500-466W-1 MASTERCUT 6.0 19 2.00 6 63
501-430-1 501-430W-1 MASTERCUT 6.0 25 0.25 6 75
501-431-1 501-431W-1 MASTERCUT 6.0 25 0.50 6 75
501-432-1 501-432W-1 MASTERCUT 6.0 25 0.75 6 75
501-433-1 501-433W-1 MASTERCUT 6.0 25 1.00 6 75
501-434-1 501-434W-1 MASTERCUT 6.0 25 1.25 6 75
501-435-1 501-435W-1 MASTERCUT 6.0 25 1.50 6 75
501-436-1 501-436W-1 MASTERCUT 6.0 25 2.00 6 75
502-451-1 502-451W-1 MASTERCUT 8.0 12 0.50 8 50
502-452-1 502-452W-1 MASTERCUT 8.0 12 0.75 8 50
502-453-1 502-453W-1 MASTERCUT 8.0 12 1.00 8 50
502-454-1 502-454W-1 MASTERCUT 8.0 12 1.25 8 50
502-455-1 502-455W-1 MASTERCUT 8.0 12 1.50 8 50
502-456-1 502-456W-1 MASTERCUT 8.0 12 2.00 8 50
502-457-1 502-457W-1 MASTERCUT 8.0 12 3.00 8 50
500-471-1 500-471W-1 MASTERCUT 8.0 19 0.50 8 63
500-472-1 500-472W-1 MASTERCUT 8.0 19 0.75 8 63
500-473-1 500-473W-1 MASTERCUT 8.0 19 1.00 8 63
500-474-1 500-474W-1 MASTERCUT 8.0 19 1.25 8 63
500-475-1 500-475W-1 MASTERCUT 8.0 19 1.50 8 63
500-476-1 500-476W-1 MASTERCUT 8.0 19 2.00 8 63
500-477-1 500-477W-1 MASTERCUT 8.0 19 3.00 8 63
501-441-1 501-441W-1 MASTERCUT 8.0 25 0.50 8 75
501-442-1 501-442W-1 MASTERCUT 8.0 25 0.75 8 75
501-443-1 501-443W-1 MASTERCUT 8.0 25 1.00 8 75
501-444-1 501-444W-1 MASTERCUT 8.0 25 1.25 8 75
501-445-1 501-445W-1 MASTERCUT 8.0 25 1.50 8 75
501-446-1 501-446W-1 MASTERCUT 8.0 25 2.00 8 75
501-447-1 501-447W-1 MASTERCUT 8.0 25 3.00 8 75
502-461-1 502-461W-1 MASTERCUT 10.0 14 0.50 10 50
502-462-1 502-462W-1 MASTERCUT 10.0 14 0.75 10 50
502-463-1 502-463W-1 MASTERCUT 10.0 14 1.00 10 50
502-464-1 502-464W-1 MASTERCUT 10.0 14 1.25 10 50
502-465-1 502-465W-1 MASTERCUT 10.0 14 1.50 10 50
502-466-1 502-466W-1 MASTERCUT 10.0 14 2.00 10 50
502-467-1 502-467W-1 MASTERCUT 10.0 14 3.00 10 50
500-481-1 500-481W-1 MASTERCUT 10.0 22 0.50 10 70
500-482-1 500-482W-1 MASTERCUT 10.0 22 0.75 10 70
500-483-1 500-483W-1 MASTERCUT 10.0 22 1.00 10 70
500-484-1 500-484W-1 MASTERCUT 10.0 22 1.25 10 70
500-485-1 500-485W-1 MASTERCUT 10.0 22 1.50 10 70
500-486-1 500-486W-1 MASTERCUT 10.0 22 2.00 10 70
500-487-1 500-487W-1 MASTERCUT 10.0 22 3.00 10 70
501-451-1 501-451W-1 MASTERCUT 10.0 38 0.50 10 100
501-452-1 501-452W-1 MASTERCUT 10.0 38 0.75 10 100
501-453-1 501-453W-1 MASTERCUT 10.0 38 1.00 10 100
501-454-1 501-454W-1 MASTERCUT 10.0 38 1.25 10 100
501-455-1 501-455W-1 MASTERCUT 10.0 38 1.50 10 100
501-456-1 501-456W-1 MASTERCUT 10.0 38 2.00 10 100
501-457-1 501-457W-1 MASTERCUT 10.0 38 3.00 10 100
502-471-1 502-471W-1 MASTERCUT 12.0 16 0.50 12 63
502-472-1 502-472W-1 MASTERCUT 12.0 16 0.75 12 63
502-473-1 502-473W-1 MASTERCUT 12.0 16 1.00 12 63
502-474-1 502-474W-1 MASTERCUT 12.0 16 1.25 12 63
502-475-1 502-475W-1 MASTERCUT 12.0 16 1.50 12 63
502-476-1 502-476W-1 MASTERCUT 12.0 16 2.00 12 63
502-477-1 502-477W-1 MASTERCUT 12.0 16 3.00 12 63
502-478-1 502-478W-1 MASTERCUT 12.0 16 4.00 12 63
500-491-1 500-491W-1 MASTERCUT 12.0 25 0.50 12 75
500-492-1 500-492W-1 MASTERCUT 12.0 25 0.75 12 75
500-493-1 500-493W-1 MASTERCUT 12.0 25 1.00 12 75
500-494-1 500-494W-1 MASTERCUT 12.0 25 1.25 12 75
500-495-1 500-495W-1 MASTERCUT 12.0 25 1.50 12 75
500-496-1 500-496W-1 MASTERCUT 12.0 25 2.00 12 75
500-497-1 500-497W-1 MASTERCUT 12.0 25 3.00 12 75
500-498-1 500-498W-1 MASTERCUT 12.0 25 4.00 12 75
501-461-1 501-461W-1 MASTERCUT 12.0 50 0.50 12 100
501-462-1 501-462W-1 MASTERCUT 12.0 50 0.75 12 100
501-463-1 501-463W-1 MASTERCUT 12.0 50 1.00 12 100
501-464-1 501-464W-1 MASTERCUT 12.0 50 1.25 12 100
501-465-1 501-465W-1 MASTERCUT 12.0 50 1.50 12 100
501-466-1 501-466W-1 MASTERCUT 12.0 50 2.00 12 100
501-467-1 501-467W-1 MASTERCUT 12.0 50 3.00 12 100
501-468-1 501-468W-1 MASTERCUT 12.0 50 4.00 12 100
500-501-1 500-501W-1 MASTERCUT 14.0 25 0.50 14 88
500-502-1 500-502W-1 MASTERCUT 14.0 25 0.75 14 88
500-503-1 500-503W-1 MASTERCUT 14.0 25 1.00 14 88
500-505-1 500-505W-1 MASTERCUT 14.0 25 1.50 14 88
500-506-1 500-506W-1 MASTERCUT 14.0 25 2.00 14 88
500-507-1 500-507W-1 MASTERCUT 14.0 25 3.00 14 88
500-508-1 500-508W-1 MASTERCUT 14.0 25 4.00 14 88
501-471-1 501-471W-1 MASTERCUT 14.0 56 0.50 14 125
501-472-1 501-472W-1 MASTERCUT 14.0 56 0.75 14 125
501-473-1 501-473W-1 MASTERCUT 14.0 56 1.00 14 125
501-475-1 501-475W-1 MASTERCUT 14.0 56 1.50 14 125
501-476-1 501-476W-1 MASTERCUT 14.0 56 2.00 14 125
501-477-1 501-477W-1 MASTERCUT 14.0 56 3.00 14 125
501-478-1 501-478W-1 MASTERCUT 14.0 56 4.00 14 125
500-511-1 500-511W-1 MASTERCUT 16.0 32 0.50 16 88
500-512-1 500-512W-1 MASTERCUT 16.0 32 0.75 16 88
500-513-1 500-513W-1 MASTERCUT 16.0 32 1.00 16 88
500-515-1 500-515W-1 MASTERCUT 16.0 32 1.50 16 88
500-516-1 500-516W-1 MASTERCUT 16.0 32 2.00 16 88
500-517-1 500-517W-1 MASTERCUT 16.0 32 3.00 16 88
500-518-1 500-518W-1 MASTERCUT 16.0 32 4.00 16 88
501-481-1 501-481W-1 MASTERCUT 16.0 56 0.50 16 150
501-482-1 501-482W-1 MASTERCUT 16.0 56 0.75 16 150
501-483-1 501-483W-1 MASTERCUT 16.0 56 1.00 16 150
501-485-1 501-485W-1 MASTERCUT 16.0 56 1.50 16 150
501-486-1 501-486W-1 MASTERCUT 16.0 56 2.00 16 150
501-487-1 501-487W-1 MASTERCUT 16.0 56 3.00 16 150
501-488-1 501-488W-1 MASTERCUT 16.0 56 4.00 16 150
500-521-1 500-521W-1 MASTERCUT 18.0 36 0.50 18 100
500-522-1 500-522W-1 MASTERCUT 18.0 36 0.75 18 100
500-523-1 500-523W-1 MASTERCUT 18.0 36 1.00 18 100
500-525-1 500-525W-1 MASTERCUT 18.0 36 1.50 18 100
500-526-1 500-526W-1 MASTERCUT 18.0 36 2.00 18 100
500-527-1 500-527W-1 MASTERCUT 18.0 36 3.00 18 100
500-528-1 500-528W-1 MASTERCUT 18.0 36 4.00 18 100
501-491-1 501-491W-1 MASTERCUT 18.0 56 0.50 18 150
501-492-1 501-492W-1 MASTERCUT 18.0 56 0.75 18 150
501-493-1 501-493W-1 MASTERCUT 18.0 56 1.00 18 150
501-495-1 501-495W-1 MASTERCUT 18.0 56 1.50 18 150
501-496-1 501-496W-1 MASTERCUT 18.0 56 2.00 18 150
501-497-1 501-497W-1 MASTERCUT 18.0 56 3.00 18 150
501-498-1 501-498W-1 MASTERCUT 18.0 56 4.00 18 150
500-531-1 500-531W-1 MASTERCUT 20.0 38 0.50 20 100
500-532-1 500-532W-1 MASTERCUT 20.0 38 0.75 20 100
500-533-1 500-533W-1 MASTERCUT 20.0 38 1.00 20 100
500-535-1 500-535W-1 MASTERCUT 20.0 38 1.50 20 100
500-536-1 500-536W-1 MASTERCUT 20.0 38 2.00 20 100
500-537-1 500-537W-1 MASTERCUT 20.0 38 3.00 20 100
500-538-1 500-538W-1 MASTERCUT 20.0 38 4.00 20 100
500-539-1 500-539W-1 MASTERCUT 20.0 38 5.00 20 100
501-501-1 501-501W-1 MASTERCUT 20.0 56 0.50 20 150
501-502-1 501-502W-1 MASTERCUT 20.0 56 0.75 20 150
501-503-1 501-503W-1 MASTERCUT 20.0 56 1.00 20 150
501-505-1 501-505W-1 MASTERCUT 20.0 56 1.50 20 150
501-506-1 501-506W-1 MASTERCUT 20.0 56 2.00 20 150
501-507-1 501-507W-1 MASTERCUT 20.0 56 3.00 20 150
501-508-1 501-508W-1 MASTERCUT 20.0 56 4.00 20 150
501-509-1 501-509W-1 MASTERCUT 20.0 56 5.00 20 150
500-541-1 500-541W-1 MASTERCUT 25.0 38 0.50 25 100
500-542-1 500-542W-1 MASTERCUT 25.0 38 0.75 25 100
500-543-1 500-543W-1 MASTERCUT 25.0 38 1.00 25 100
500-545-1 500-545W-1 MASTERCUT 25.0 38 1.50 25 100
500-546-1 500-546W-1 MASTERCUT 25.0 38 2.00 25 100
500-547-1 500-547W-1 MASTERCUT 25.0 38 3.00 25 100
500-548-1 500-548W-1 MASTERCUT 25.0 38 4.00 25 100
500-549-1 500-549W-1 MASTERCUT 25.0 38 5.00 25 100
501-511-1 501-511W-1 MASTERCUT 25.0 70 0.50 25 150
501-512-1 501-512W-1 MASTERCUT 25.0 70 0.75 25 150
501-513-1 501-513W-1 MASTERCUT 25.0 70 1.00 25 150
501-515-1 501-515W-1 MASTERCUT 25.0 70 1.50 25 150
501-516-1 501-516W-1 MASTERCUT 25.0 70 2.00 25 150
501-517-1 501-517W-1 MASTERCUT 25.0 70 3.00 25 150
501-518-1 501-518W-1 MASTERCUT 25.0 70 4.00 25 150
501-519-1 501-519W-1 MASTERCUT 25.0 70 5.00 25 150
