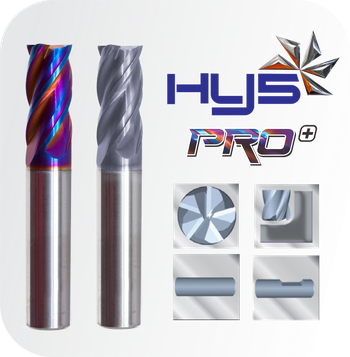

Fabricada com geometria específica para trabalhos em aços inoxidáveis, essa ferramenta possui um núcleo super rígido com capacidade de remoção de material superior e sem rebarbas.
Disponíveis também com coberturas PowerN (nACo) ou PowerNR (nACRo) para maior durabilidade
Com Weldon | Sem Weldon | Com Weldon | Sem Weldon | Ø MM | Corte | Haste | Raio | Total |
PowerN | PowerN | PowerNR | PowerNR | |||||
556-400W-5 | 556-400-5 | 556-400W-8 | 556-400-8 | 3 | 12 | 3 | 0.25 | 38 |
556-401W-5 | 556-401-5 | 556-401W-8 | 556-401-8 | 3 | 12 | 3 | 0.50 | 38 |
556-402W-5 | 556-402-5 | 556-402W-8 | 556-402-8 | 3 | 12 | 3 | 0.75 | 38 |
557-400W-5 | 557-400-5 | 557-400W-8 | 557-400-8 | 3 | 20 | 3 | 0.25 | 65 |
557-401W-5 | 557-401-5 | 557-401W-8 | 557-401-8 | 3 | 20 | 3 | 0.50 | 65 |
557-402W-5 | 557-402-5 | 557-402W-8 | 557-402-8 | 3 | 20 | 3 | 0.75 | 65 |
557-403W-5 | 557-403-5 | 557-403W-8 | 557-403-8 | 3 | 20 | 3 | 1.0 | 65 |
556-420W-5 | 556-420-5 | 556-420W-8 | 556-420-8 | 4 | 14 | 4 | 0.25 | 50 |
556-421W-5 | 556-421-5 | 556-421W-8 | 556-421-8 | 4 | 14 | 4 | 0.50 | 50 |
556-422W-5 | 556-422-5 | 556-422W-8 | 556-422-8 | 4 | 14 | 4 | 0.75 | 50 |
556-423W-5 | 556-423-5 | 556-423W-8 | 556-423-8 | 4 | 14 | 4 | 1.0 | 50 |
557-410W-5 | 557-410-5 | 557-410W-8 | 557-410-8 | 4 | 20 | 4 | 0.25 | 65 |
557-411W-5 | 557-411-5 | 557-411W-8 | 557-411-8 | 4 | 20 | 4 | 0.50 | 65 |
557-412W-5 | 557-412-5 | 557-412W-8 | 557-412-8 | 4 | 20 | 4 | 0.75 | 65 |
557-413W-5 | 557-413-5 | 557-413W-8 | 557-413-8 | 4 | 20 | 4 | 1.0 | 65 |
556-400W-5 | 556-400-5 | 556-400W-8 | 556-400-8 | 5 | 16 | 5 | 0.25 | 50 |
556-441W-5 | 556-441-5 | 556-441W-8 | 556-441-8 | 5 | 16 | 5 | 0.50 | 50 |
556-442W-5 | 556-442-5 | 556-442W-8 | 556-442-8 | 5 | 16 | 5 | 0.75 | 50 |
556-443W-5 | 556-443-5 | 556-443W-8 | 556-443-8 | 5 | 16 | 5 | 1.0 | 50 |
557-420W-5 | 557-420-5 | 557-420W-8 | 557-420-8 | 5 | 20 | 5 | 0.25 | 75 |
557-422W-5 | 557-422-5 | 557-422W-8 | 557-422-8 | 5 | 20 | 5 | 0.50 | 75 |
557-423W-5 | 557-423-5 | 557-423W-8 | 557-423-8 | 5 | 20 | 5 | 0.75 | 75 |
557-424W-5 | 557-424-5 | 557-424W-8 | 557-424-8 | 5 | 20 | 5 | 1.0 | 75 |
556-460W-5 | 556-460-5 | 556-460W-8 | 556-460-8 | 6 | 19 | 6 | 0.25 | 63 |
556-461W-5 | 556-461-5 | 556-461W-8 | 556-461-8 | 6 | 19 | 6 | 0.50 | 63 |
556-462W-5 | 556-462-5 | 556-462W-8 | 556-462-8 | 6 | 19 | 6 | 0.75 | 63 |
556-463W-5 | 556-463-5 | 556-463W-8 | 556-463-8 | 6 | 19 | 6 | 1.0 | 63 |
556-464W-5 | 556-464-5 | 556-464W-8 | 556-464-8 | 6 | 19 | 6 | 1.25 | 63 |
556-465W-5 | 556-465-5 | 556-465W-8 | 556-465-8 | 6 | 19 | 6 | 1.50 | 63 |
556-466W-5 | 556-466-5 | 556-466W-8 | 556-466-8 | 6 | 19 | 6 | 2.0 | 63 |
557-430W-5 | 557-430-5 | 557-430W-8 | 557-430-8 | 6 | 25 | 6 | 0.25 | 75 |
557-431W-5 | 557-431-5 | 557-431W-8 | 557-431-8 | 6 | 25 | 6 | 0.50 | 75 |
557-432W-5 | 557-432-5 | 557-432W-8 | 557-432-8 | 6 | 25 | 6 | 0.75 | 75 |
557-433W-5 | 557-433-5 | 557-433W-8 | 557-433-8 | 6 | 25 | 6 | 1.0 | 75 |
557-434W-5 | 557-434-5 | 557-434W-8 | 557-434-8 | 6 | 25 | 6 | 1.25 | 75 |
557-435W-5 | 557-435-5 | 557-435W-8 | 557-435-8 | 6 | 25 | 6 | 1.50 | 75 |
557-436W-5 | 557-436-5 | 557-436W-8 | 557-436-8 | 6 | 25 | 6 | 2.0 | 75 |
556-417W-5 | 556-417-5 | 556-417W-8 | 556-417-8 | 8 | 19 | 8 | 0.50 | 63 |
556-472W-5 | 556-472-5 | 556-472W-8 | 556-472-8 | 8 | 19 | 8 | 0.75 | 63 |
556-472W-5 | 556-472-5 | 556-472W-8 | 556-472-8 | 8 | 19 | 8 | 1.0 | 63 |
556-474W-5 | 556-474-5 | 556-474W-8 | 556-474-8 | 8 | 19 | 8 | 1.25 | 63 |
556-475W-5 | 556-475-5 | 556-475W-8 | 556-475-8 | 8 | 19 | 8 | 1.50 | 63 |
556-476W-5 | 556-476-5 | 556-476W-8 | 556-476-8 | 8 | 19 | 8 | 2.0 | 63 |
556-477W-5 | 556-477-5 | 556-477W-8 | 556-477-8 | 8 | 19 | 8 | 3.0 | 63 |
557-441W-5 | 557-441-5 | 557-441W-8 | 557-441-8 | 8 | 25 | 8 | 0.50 | 75 |
557-442W-5 | 557-442-5 | 557-442W-8 | 557-442-8 | 8 | 25 | 8 | 0.75 | 75 |
557-443W-5 | 557-443-5 | 557-443W-8 | 557-443-8 | 8 | 25 | 8 | 1.0 | 75 |
557-444W-5 | 557-444-5 | 557-444W-8 | 557-444-8 | 8 | 25 | 8 | 1.25 | 75 |
557-445W-5 | 557-445-5 | 557-445W-8 | 557-445-8 | 8 | 25 | 8 | 1.50 | 75 |
557-446W-5 | 557-446-5 | 557-446W-8 | 557-446-8 | 8 | 25 | 8 | 2.0 | 75 |
557-447W-5 | 557-447-5 | 557-447W-8 | 557-447-8 | 8 | 25 | 8 | 3.0 | 75 |
556-481W-5 | 556-481-5 | 556-481W-8 | 556-481-8 | 10 | 22 | 10 | 0.50 | 70 |
556-482W-5 | 556-482-5 | 556-482W-8 | 556-482-8 | 10 | 22 | 10 | 0.75 | 70 |
556-483W-5 | 556-483-5 | 556-483W-8 | 556-483-8 | 10 | 22 | 10 | 1.0 | 70 |
556-484W-5 | 556-484-5 | 556-484W-8 | 556-484-8 | 10 | 22 | 10 | 1.25 | 70 |
556-485W-5 | 556-485-5 | 556-485W-8 | 556-485-8 | 10 | 22 | 10 | 1.50 | 70 |
556-486W-8 | 556-486-8 | 556-486W-8 | 556-486-8 | 10 | 22 | 10 | 2.0 | 70 |
556-487W-5 | 556-487-5 | 556-487W-8 | 556-487-8 | 10 | 22 | 10 | 3.0 | 70 |
557-451W-5 | 557-451-5 | 557-451W-8 | 557-451-8 | 10 | 38 | 10 | 0.50 | 100 |
557-452W-5 | 557-452-5 | 557-452W-8 | 557-452-8 | 10 | 38 | 10 | 0.75 | 100 |
557-453W-5 | 557-453-5 | 557-453W-8 | 557-453-8 | 10 | 38 | 10 | 1.0 | 100 |
557-454W-5 | 557-454-5 | 557-454W-8 | 557-454-8 | 10 | 38 | 10 | 1.25 | 100 |
557-455W-5 | 557-455-5 | 557-455W-8 | 557-455-8 | 10 | 38 | 10 | 1.50 | 100 |
557-456W-5 | 557-456-5 | 557-456W-8 | 557-456-8 | 10 | 38 | 10 | 2.0 | 100 |
557-457W-5 | 557-457-5 | 557-457W-8 | 557-457-8 | 10 | 38 | 10 | 3.0 | 100 |
556-491W-5 | 556-491-5 | 556-491W-8 | 556-491-8 | 12 | 25 | 12 | 0.50 | 75 |
556-492W-5 | 556-492-5 | 556-492W-8 | 556-492-8 | 12 | 25 | 12 | 0.75 | 75 |
556-493W-5 | 556-493-5 | 556-493W-8 | 556-493-8 | 12 | 25 | 12 | 1.0 | 75 |
556-494W-5 | 556-494-5 | 556-494W-8 | 556-494-8 | 12 | 25 | 12 | 1.25 | 75 |
556-495W-5 | 556-495-5 | 556-495W-8 | 556-495-8 | 12 | 25 | 12 | 1.50 | 75 |
556-496W-5 | 556-496-5 | 556-496W-8 | 556-496-8 | 12 | 25 | 12 | 2.0 | 75 |
556-497W-5 | 556-497-5 | 556-497W-8 | 556-497-8 | 12 | 25 | 12 | 3.0 | 75 |
556-498W-5 | 556-498-5 | 556-498W-8 | 556-498-8 | 12 | 25 | 12 | 4.0 | 75 |
557-461W-5 | 557-461-5 | 557-461W-8 | 557-461-8 | 12 | 50 | 12 | 0.50 | 100 |
557-462W-5 | 557-462-5 | 557-462W-8 | 557-462-8 | 12 | 50 | 12 | 0.75 | 100 |
556-463W-5 | 556-463-5 | 556-463W-8 | 556-463-8 | 12 | 50 | 12 | 1.0 | 100 |
556-464-W5 | 556-464-5 | 556-464W-8 | 556-464-8 | 12 | 50 | 12 | 1.25 | 100 |
556-465W-5 | 556-465-5 | 556-465W-8 | 556-465-8 | 12 | 50 | 12 | 1.50 | 100 |
556-466W-5 | 556-466-5 | 556-466W-8 | 556-466-8 | 12 | 50 | 12 | 2.0 | 100 |
556-467W-5 | 556-467-5 | 556-467W-8 | 556-467-8 | 12 | 50 | 12 | 3.0 | 100 |
556-468W-5 | 556-468-5 | 556-468W-8 | 556-468-8 | 12 | 50 | 12 | 4.0 | 100 |
556-501W-5 | 556-501-5 | 556-501W-8 | 556-501-8 | 14 | 25 | 14 | 0.50 | 88 |
556-502W-5 | 556-502-5 | 556-502W-8 | 556-502-8 | 14 | 25 | 14 | 0.75 | 88 |
556-503W-5 | 556-503-5 | 556-503W-8 | 556-503-8 | 14 | 25 | 14 | 1.0 | 88 |
556-505W-5 | 556-505-5 | 556-505W-8 | 556-505-8 | 14 | 25 | 14 | 1.50 | 88 |
556-506W-5 | 556-506-5 | 556-506W-8 | 556-506-8 | 14 | 25 | 14 | 2.0 | 88 |
556-507W-5 | 556-507-5 | 556-507W-8 | 556-507-8 | 14 | 25 | 14 | 3.0 | 88 |
556-508W-5 | 556-508-5 | 556-508W-8 | 556-508-8 | 14 | 25 | 14 | 4.0 | 88 |
557-471W-5 | 557-471-5 | 557-471W-8 | 557-471-8 | 14 | 56 | 14 | 0.50 | 125 |
557-472W-5 | 557-472-5 | 557-472W-8 | 557-472-8 | 14 | 56 | 14 | 0.75 | 125 |
557-473W-5 | 557-473-5 | 557-473W-8 | 557-473-8 | 14 | 56 | 14 | 1.0 | 125 |
557-475W-5 | 557-475-5 | 557-475W-8 | 557-475-8 | 14 | 56 | 14 | 1.50 | 125 |
557-476W-5 | 557-476-5 | 557-476W-8 | 557-476-8 | 14 | 56 | 14 | 2.0 | 125 |
557-477W-5 | 557-477-5 | 557-477W-8 | 557-477-8 | 14 | 56 | 14 | 3.0 | 125 |
557-478W-5 | 557-478-5 | 557-478W-8 | 557-478-8 | 14 | 56 | 14 | 4.0 | 125 |
556-511W-5 | 556-511-5 | 556-511W-8 | 556-511-8 | 16 | 32 | 16 | 0.50 | 88 |
556-512W-5 | 556-512-5 | 556-512W-8 | 556-512-8 | 16 | 32 | 16 | 0.75 | 88 |
556-513W-5 | 556-513-5 | 556-513W-8 | 556-513-8 | 16 | 32 | 16 | 1.0 | 88 |
556-515W-5 | 556-515-5 | 556-515W-8 | 556-515-8 | 16 | 32 | 16 | 1.50 | 88 |
556-516W-5 | 556-516-5 | 556-516W-8 | 556-516-8 | 16 | 32 | 16 | 2.0 | 88 |
556-517W-5 | 556-517-5 | 556-517W-8 | 556-517-8 | 16 | 32 | 16 | 3.0 | 88 |
556-518W-5 | 556-518-5 | 556-518W-8 | 556-518-8 | 16 | 32 | 16 | 4.0 | 88 |
557-481W-5 | 557-481-5 | 557-481W-8 | 557-481-8 | 16 | 56 | 16 | 0.50 | 150 |
557-482W-5 | 557-482-5 | 557-482W-8 | 557-482-8 | 16 | 56 | 16 | 0.75 | 150 |
557-483W-5 | 557-483-5 | 557-483W-8 | 557-483-8 | 16 | 56 | 16 | 1.0 | 150 |
557-485W-5 | 557-485-5 | 557-485W-8 | 557-485-8 | 16 | 56 | 16 | 1.50 | 150 |
557-486W-5 | 557-486-5 | 557-486W-8 | 557-486-8 | 16 | 56 | 16 | 2.0 | 150 |
557-487W-5 | 557-487-5 | 557-487W-8 | 557-487-8 | 16 | 56 | 16 | 3.0 | 150 |
557-488W-5 | 557-488-5 | 557-488W-8 | 557-488-8 | 16 | 56 | 16 | 4.0 | 150 |
556-521W-5 | 556-521-5 | 556-521W-8 | 556-521-8 | 18 | 36 | 18 | 0.50 | 100 |
556-522W-5 | 556-522-5 | 556-522W-8 | 556-522-8 | 18 | 36 | 18 | 0.75 | 100 |
556-523W-5 | 556-523-5 | 556-523W-8 | 556-523-8 | 18 | 36 | 18 | 1.0 | 100 |
556-525W-5 | 556-525-5 | 556-525W-8 | 556-525-8 | 18 | 36 | 18 | 1.50 | 100 |
556-526W-5 | 556-526-5 | 556-526W-8 | 556-526-8 | 18 | 36 | 18 | 2.0 | 100 |
556-527W-5 | 556-527-5 | 556-527W-8 | 556-527-8 | 18 | 36 | 18 | 3.0 | 100 |
556-528W-5 | 556-528-5 | 556-528W-8 | 556-528-8 | 18 | 36 | 18 | 4.0 | 100 |
557-491W-5 | 557-491-5 | 557-491W-8 | 557-491-8 | 18 | 56 | 18 | 0.50 | 150 |
557-492W-5 | 557-492-5 | 557-492W-8 | 557-492-8 | 18 | 56 | 18 | 0.75 | 150 |
557-493W-5 | 557-493-5 | 557-493W-8 | 557-493-8 | 18 | 56 | 18 | 1.0 | 150 |
557-495W-5 | 557-495-5 | 557-495W-8 | 557-495-8 | 18 | 56 | 18 | 1.50 | 150 |
557-496W-5 | 557-496-5 | 557-496W-8 | 557-496-8 | 18 | 56 | 18 | 2.0 | 150 |
557-497W-5 | 557-497-5 | 557-497W-8 | 557-497-8 | 18 | 56 | 18 | 3.0 | 150 |
557-498W-5 | 557-498-5 | 557-498W-8 | 557-498-8 | 18 | 56 | 18 | 4.0 | 150 |
556-531W-5 | 556-531-5 | 556-531W-8 | 556-531-8 | 20 | 38 | 20 | 0.50 | 100 |
556-532W-5 | 556-532-5 | 556-532W-8 | 556-532-8 | 20 | 38 | 20 | 0.75 | 100 |
556-533W-5 | 556-533-5 | 556-533W-8 | 556-533-8 | 20 | 38 | 20 | 1.0 | 100 |
556-535W-5 | 556-535-5 | 556-535W-8 | 556-535-8 | 20 | 38 | 20 | 1.50 | 100 |
556-536W-5 | 556-536-5 | 556-536W-8 | 556-536-8 | 20 | 38 | 20 | 2.0 | 100 |
556-537W-5 | 556-537-5 | 556-537W-8 | 556-537-8 | 20 | 38 | 20 | 3.0 | 100 |
556-538W-5 | 556-538-5 | 556-538W-8 | 556-538-8 | 20 | 38 | 20 | 4.0 | 100 |
556-539W-5 | 556-539-5 | 556-539W-8 | 556-539-8 | 20 | 38 | 20 | 5.0 | 100 |
557-501W-5 | 557-501-5 | 557-501W-8 | 557-501-8 | 20 | 56 | 20 | 0.50 | 150 |
557-502W-5 | 557-502-5 | 557-502W-8 | 557-502-8 | 20 | 56 | 20 | 0.75 | 150 |
557-503W-5 | 557-503-5 | 557-503W-8 | 557-503-8 | 20 | 56 | 20 | 1.0 | 150 |
557-505W-5 | 557-505-5 | 557-505W-8 | 557-505-8 | 20 | 56 | 20 | 1.50 | 150 |
557-506W-5 | 557-506-5 | 557-506W-8 | 557-506-8 | 20 | 56 | 20 | 2.0 | 150 |
557-507W-5 | 557-507-5 | 557-507W-8 | 557-507-8 | 20 | 56 | 20 | 3.0 | 150 |
557-508W-5 | 557-508-5 | 557-508W-8 | 557-508-8 | 20 | 56 | 20 | 4.0 | 150 |
557-509W-5 | 557-509-5 | 557-509W-8 | 557-509-8 | 20 | 56 | 20 | 5.0 | 150 |
556-541W-5 | 556-541-5 | 556-541W-8 | 556-541-8 | 25 | 38 | 25 | 0.50 | 100 |
556-542W-5 | 556-542-5 | 556-542W-8 | 556-542-8 | 25 | 38 | 25 | 0.75 | 100 |
554-543W-5 | 554-543-5 | 554-543W-8 | 554-543-8 | 25 | 38 | 25 | 1.0 | 100 |
556-545W-5 | 556-545-5 | 556-545W-8 | 556-545-8 | 25 | 38 | 25 | 1.50 | 100 |
556-546W-5 | 556-546-5 | 556-546W-8 | 556-546-8 | 25 | 38 | 25 | 2.0 | 100 |
556-547W-5 | 556-547-5 | 556-547W-8 | 556-547-8 | 25 | 38 | 25 | 3.0 | 100 |
556-548W-5 | 556-548-5 | 556-548W-8 | 556-548-8 | 25 | 38 | 25 | 4.0 | 100 |
556-549W-5 | 556-549-5 | 556-549W-8 | 556-549-8 | 25 | 38 | 25 | 5.0 | 100 |
557-511W-5 | 557-511-5 | 557-511W-8 | 557-511-8 | 25 | 70 | 25 | 0.50 | 150 |
557-512W-5 | 557-512-5 | 557-512W-8 | 557-512-8 | 25 | 70 | 25 | 0.75 | 150 |
557-513W-5 | 557-513-5 | 557-513W-8 | 557-513-8 | 25 | 70 | 25 | 1.0 | 150 |
557-515W-5 | 557-515-5 | 557-515W-8 | 557-515-8 | 25 | 70 | 25 | 1.50 | 150 |
557-516W-5 | 557-516-5 | 557-516W-8 | 557-516-8 | 25 | 70 | 25 | 2.0 | 150 |
557-517W-5 | 557-517-5 | 557-517W-8 | 557-517-8 | 25 | 70 | 25 | 3.0 | 150 |
557-518W-5 | 557-518-5 | 557-518W-8 | 557-518-8 | 25 | 70 | 25 | 4.0 | 150 |
557-519W-5 | 557-519-5 | 557-519W-8 | 557-519-8 | 25 | 70 | 25 | 5.0 | 150 |
